serieschart

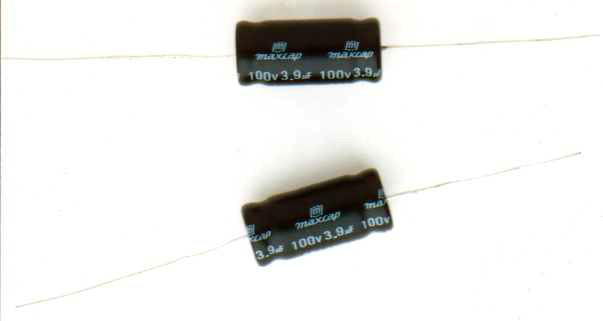

Bi-polar type of capacitor
For use in speaker networks of Hi-Fi sound audio system and
have an excellent freqency characteristics.
These capacitors cannot withstand an AC application which
exceeds the specified maximum permissible ripple current
rating.

CHARACTERISTICS

Rated Working Voltage

25 ~ 100V DC

Operating Temperature Range

- 40°C ~ +85°C

Capacitance Tolerance

± 20% (M) [± 10% (K) is available upon request]

(at 20°C, 1kHz)

Leakage Current
(In both directions)

After 1 minute : I = 0.06CV (mA) or 10mA, whichever is greater
After 2 minutes : I = 0.03CV (mA) or 3mA, whichever is greater

(at 20°C)

Dissipation Factor

Rated Voltage (V)	25 ~ 35	50	63	100
Dissipation Factor	0.14	0.12	0.11	0.10

(at 1kHz)

Load Life

The following specification shall be satisfied when the capacitors are restored to 20°C after the rated DC voltage is applied for 3000 hours at 85°C. During this test, the noted DC voltage shall be reversed on the capacitor every 250 hours.

Capacitance Change	£	± 15% of the initial value
Dissipation Factor	£	150% of the initial specified value
Leakage Current	£	The initial specified value

Others

Satisfies characteristic W of JIS C5141

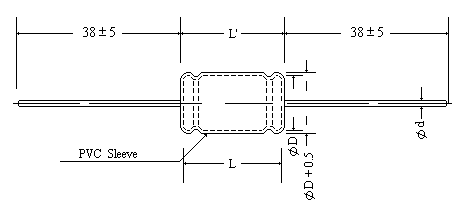

Dimensions

Axial Lead

Unit (mm)

Case Diameter (D)	Tolerance Case Diameter	Tolerance Case Length (L)	Lead Thickness (d)
6.3	0.5	1.5	0.6
8.0	0.5	1.5	0.6
10.0	0.5	1.5	0.6
13.0	0.5	1.5	0.6
16.0	0.5	2.0	0.8
18.0	0.5	2.0	0.8
20.0	0.5	2.0	0.8
22.0	1.0	2.0	0.8

CASE SIZES

ØDxL (mm)

mF	V
mF	25	35	50	63	100
0.1					6.3x15
0.15					6.3x15
0.22				6.3x15	6.3x15
0.33			6.3x15	6.3x15	8x14
0.47	6.3x15	6.3x15	6.3x15	6.3x15	8x17
0.68	6.3x15	6.3x15	6.3x15	8x14	8x17
1.0	6.3x15	6.3x15	8x14	8x17	10x20
1.5	8x14	8x14	8x17	8x17	10x25
2.2	8x14	8x14	10x20	10x20	13x25
3.3	8x17	8x17	10x20	10x25	13x30
4.7	10x20	10x20	10x25	13x25	16x32
6.8	10x20	10x20	13x25	13x30	16x36
10	10x25	10x25	13x30	16x32	18x36
15	13x25	13x25	16x32	18x36	22x42
22	13x30	13x30	18x36	18x40	22x50
33	16x32	16x32	18x40	22x42	22x50
47	18x36	18x36	22x42	22x50
68	18x40	18x40	22x50
100	22x42	22x42
