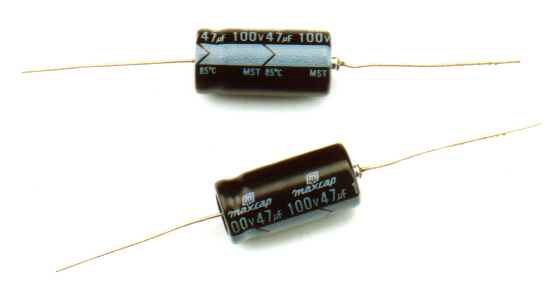

MST E-Cap Photo Miniaturized Standard Series
  • Series for 85°C operating temperature
  • Case sizes are standard and can be changed upon request
  • 85°C, 3000 hours assured


CHARACTERISTICS

Rated Working Voltage 6.3 ~ 450V
Operating Temperature Range - 40°C ~ +85°C
Capacitance Tolerance
± 20% (M) (at 20°C, 120Hz)
Leakage Current


Rated Voltage £ 100V >100V
Time 1 minute 2 minutes < 1 minute £ 5 minutes
Leakage Current 0.03CV or 4mA
whichever is larger		 0.01CV or 3mA
whichever is larger		 CV £ 1000 CV > 1000 CV£ 1000 CV > 1000
0.1CV + 40 0.04CV + 100 0.03CV + 15 0.02CV + 25

(at 20°C)
Dissipation Factor
Working Voltage (V) 6.3 10 16 25 35 50 63 80 ~ 100 160 ~ 250 350 ~ 450
Dissipation Factor 0.22 0.19 0.16 0.14 0.12 0.10 0.09 0.08 0.20 0.24

Note: For capacitors whose capacitance exceeds 1000mF, the value of DF should be increased by 0.02 for every 1000mF.

(at 20°C, 120Hz)
Load Life
The following specification shall be satisfied when the capacitors are restored to 20°C after the rated working voltage is applied for 3000 hours at 85°C.
Rated Voltage (V)   6.3 ~ 16 25 ~ 100 160 ~ 250 350 ~ 450
Capacitance Change case dia. £ 6.3 ± 20% ± 20% ± 20% ± 20%
> 6.3 ± 20% ± 15%
Dissipation Factor Less than 150% of the initial specified value Less than 200% of the
initial specified value		 Less than 200% of the
initial specified value
Leakage Current Less than the initial specified value
Others Satisfied characteristics W of JIS C5141

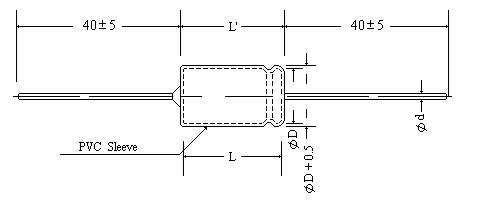

Dimensions

Axial Lead Unit (mm)

MST E-Cap dimension

Case Diameter (D) Tolerance Case Diameter Tolerance Case Length (L) Lead Thickness (d)
5.0 0.5 1.0 0.6
6.3 0.5 1.0 0.6
8.0 0.5 1.5 0.6
10.0 0.5 1.5 0.6
13.0 0.5 1.5 0.6
16.0 0.5 2.0 0.8
18.0 0.5 2.0 0.8
22.0 1.0 2.0 0.8



CASE SIZES ØDxL (mm)
mF V
6.3 10 16 25 35 50 63 80 100 160 200 250 350 400 450
0.15                 5x12.5
0.22               5x12.5 5x12.5
0.33             5x12.5 5x12.5 5x12.5       6.3x12.5
0.47           5x12.5 5x12.5 5x12.5 5x12.5     6.3x12.5 6.3x12.5
0.68           5x12.5 5x12.5 5x12.5 5x12.5 5x12.5 6.3x12.5 6.3x12.5 6.3x16   8x16
1         5x12.5 5x12.5 5x12.5 5x12.5 5x12.5 5x12.5 6.3x12.5 6.3x12.5 8x16 8x16 8x16
1.5         5x12.5 5x12.5 5x12.5 5x12.5 5x12.5 6.3x12.5 6.3x12.5 6.3x16 8x16 8x16 8x16
2.2         5x12.5 5x12.5 5x12.5 5x12.5 6.3x12.5 6.3x16 6.3x16 6.3x16 8x16 8x16 8x20
3.3         5x12.5 5x12.5 5x12.5 6.3x12.5 6.3x12.5 8x16 8x16 8x16 8x20 8x20 10x20
4.7         5x12.5 5x12.5 6.3x12.5 6.3x12.5 6.3x16 8x16 8x16 8x16 10x20 10x20 10x20
6.8       5x12.5 5x12.5 6.3x12.5 6.3x12.5 6.3x16 6.3x16 8x16 8x16 8x20 10x20 10x20 10x25
10     5x12.5 5x12.5 6.3x12.5 6.3x12.5 6.3x16 6.3x16 8x16 8x20 8x20 10x20 10x25 10x25 13x25
15   5x12.5 5x12.5 5x12.5 6.3x12.5 6.3x12.5 6.3x16 8x16 8x16 10x20 10x20 10x25 13x25 13x25 13x32
22 5x12.5 5x12.5 5x12.5 6.3x12.5 6.3x12.5 6.3x16 8x16 8x16 8x20 10x20 10x25 13x25 13x32 13x32 16x32
33 5x12.5 5x12.5 6.3x12.5 6.3x12.5 6.3x16 6.3x16 8x20 8x20 10x20 10x25 13x25 13x25 16x32 16x32 16x32
47 5x12.5 6.3x12.5 6.3x12.5 6.3x16 8x16 8x16 8x20 8x20 10x20 13x25 13x32 13x32 16x32 16x40 16x40
68 6.3x12.5 6.3x12.5 6.3x16 6.3x16 8x16 8x16 10x20 10x20 10x25 13x32 16x32 16x32 16x40 18x40 18x40
100 6.3x12.5 6.3x16 8x16 8x16 8x16 8x20 10x20 10x25 13x25 16x32 16x40 16x40 18x40 22x42 22x42
150 6.3x16 6.3x16 8x16 8x16 8x20 10x20 10x25 13x25 13x25 16x32 18x40 18x40 22x42 22x50 22x50
220 6.3x16 8x16 8x16 8x20 10x20 10x20 13x25 13x25 13x32 16x40 18x40 22x42 22x50
330 8x16 8x16 8x20 10x20 10x25 10x25 13x25 13x32 16x32 18x40 22x42 22x50
470 8x16 8x20 10x20 10x20 13x25 13x25 13x32 16x32 16x40 22x42 22x50
680 8x20 10x20 10x25 10x25 13x25 13x32 16x32 16x40 18x40 22x50
1000 10x20 10x25 13x25 13x25 13x32 16x32 16x40 18x40 22x42
1500 10x25 13x25 13x25 13x32 16x32 16x40 18x40 22x42
2200 13x25 13x32 13x32 16x32 16x40 18x40 22x42
3300 13x32 16x32 16x32 16x40 16x40 22x42 22x50
4700 16x32 16x32 16x40 16x40 18x40 22x50
6800 16x32 16x40 18x40 18x40 22x42
10000 16x40 18x40 18x40 22x42
15000 18x40 22x42 22x42
22000 22x42 22x50 22x50
