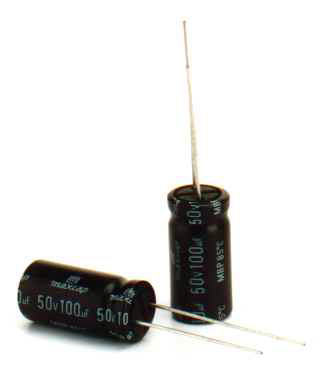

MBP E-Cap Photo
  • Bi-polar type of capacitors
  • Miniaturized size
  • Guaranteed operating life of more than 5000 hours at 85°C
  • Lead cutting/forming and lead taping are available upon
    request



CHARACTERISTICS

Working Voltage Range 6.3 ~ 250V DC
Operating Temperature Range -40 ~ +85°C
Capacitance Tolerance
± 20% (M) (at 20°C, 120Hz)
Leakage Current
After 1 minute : I=0.06CV or 10mA, whichever is greater
After 5 minutes : I=0.03CV or 3mA, whichever is greater
Where:
I : Leakage Current (mA)
C : Nominal Capacitance (mF)
V : Rated Voltage (V)

(at 20°C)

Dissipation Factor
Rated Voltage (V) 6.3 ~ 10 16 ~ 25 35 50 63 ~ 80 100 160 200 250
Dissipation Factor 0.24 0.20 0.16 0.14 0.12 0.10 0.20 0.20 0.20

Note: For capacitors whose capacitance exceeds 1000mF, the value of DF should be increased by 0.02 for every 1000mF.

(at 20°C, 120Hz)

Load Life 85°C, 5000 hours
Polarization shall be reversed every 250 hours
Others Other specifications shall comply with JIS C5141, characteristics W


DIMENSIONS

Radial Lead Unit (mm)

ØD 5 6.3 8 10 13 16 18
Ød 0.5 0.5 0.5 0.6 0.6 0.8 0.8
F 2.0 2.5 3.5 5.0 5.0 7.5 7.5
L' L + 1.0 L + 1.5 L + 2.0
ØD' ØD + 0.5



CASE SIZES ØDxL (mm)
mF V
6.3 10 16 25 35 50 63 80 100
0.47           5x11     5x11
1           5x11     5x11
2.2           5x11   5x11 6.3x11
3.3           5x11 5x11 6.3x11 6.3x11
4.7         5x11 5x11 5x11 6.3x11 8x11.5
10     5x11 5x11 5x11 6.3x11 6.3x11 8x11.5 10x12.5
22   5x11 5x11 5x11 6.3x11 8x11.5 8x11.5 10x16 10x16
33 5x11 5x11 5x11 6.3x11 8x11.5 8x11.5 10x12.5 10x16 10x20
47 5x11 5x11 6.3x11 6.3x11 8x11.5 10x12.5 10x16 10x20 13x20
100 6.3x11 6.3x11 8x11.5 10x12.5 10x12.5 10x20 10x20 13x25 16x25
220 8x11.5 8x11.5 10x12.5 10x16 10x20 13x18 13x25 16x31.5 18x35.5
330 10x12.5 10x12.5 10x16 10x20 13x18 13x20 16x31.5 18x35.5
470 10x12.5 10x16 10x16 13x18 13x20 16x31.5 16x35.5
1000 10x20 10x20 13x18 16x25 16x31.5
2200 13x25 13x25 16x31.5 18x35.5
3300 16x25 16x31.5 16x35.5
4700 16x31.5 16x35.5
6800 18x35.5
