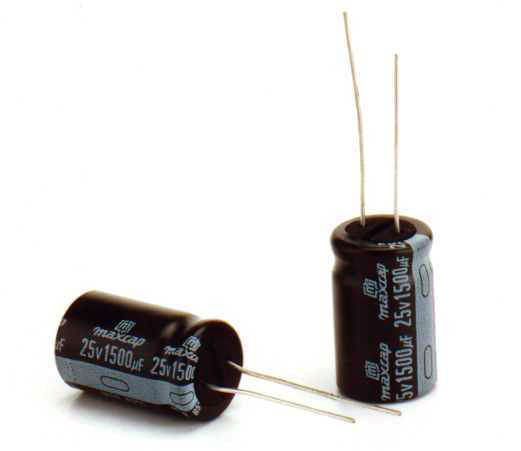

Series for - 40°C ~ + 125°C operating temperature
Guaranteed operating life of 2000 hours at 125°C and
also have the wide operating temperature
Applications: high reliability equipment, filtering circuit
of switching power supply and industrial control
equipment
Lead cutting/forming and lead taping are available upon
request

CHARACTERISTICS

Rated Working Voltage

10 ~ 63V

Operating Temperature Range

-40 ~ +125°C

Capacitance Tolerance

-10 ~ + 50%

(at 20°C, 120Hz)

Leakage Current

After 5 minutes
I = 0.002CV or 2mA, whichever is larger
Where I: Maximum Leakage Current (mA) at 20°C
C: Nominal Capacitance (mF)
V: Rated Working Voltage (V)

Dissipation Factor

Rated Voltage (V)	10	16	25	35	50	63
Dissipation Factor	0.20	0.17	0.17	0.12	0.10	0.10

(at 20°C, 120Hz)

Low Temperature
Characteristics

Capacitance changes (at 120Hz):

Maximum Ripple
Current

Maximum rms ripple current at 125°C, 120Hz is gven in the table

Load Life

The following specification shall be satisfied when the capacitors are restored to 20°C after the rated working voltage is applied for 2000 hours at 125°C.

Capacitance Change	£	± 15% of the initial value
Dissipation Factor	£	150% of the initial specified value
Leakage Current	£	The initial specified value

Shelf Life

The following specification shall be satisfied when the capacitors are restored to 20°C after exposing them at
125°C for 2000 hours without voltage.

Capacitance Change	£	± 15% of the initial value
Dissipation Factor	£	150% of the initial specified value
Leakage Current	£	5 times the initial specified value

Others

Satisfied characteristics C of JIS C5141

DIMENSIONS

Radial Lead

Unit (mm)

E-Cap dimension

ØD	8	10	13	16	18
Ød	0.5	06		0.8
F	3.5	5.0		7.5
ØD'	ØD + 0.5 max.	ØD + 1.0 max.
L'	L + 2.0 max.

STANDARD RATINGS

Rated Voltage (V)	Capacitance (mF)	Case Size ØD x L (mm)	Maximum Ripple Current (mA: Max. Operating Temp./120Hz)
10	47	8x11.5	92
	100	10x16	145
	220	13x18	330
	330	13x18	410
	470	13x25	525
	1000	16x31.5	960
16	33	8x11.5	91
	47	10x12.5	110
	100	10x20	206
	220	13x18	400
	330	13x25	525
	470	16x25	720
25	22	8x11.5	70
	33	10x12.5	100
	47	10x16	130
	100	10x20	250
	220	13x25	470
	330	16x25	631
	470	16x31.5	810
35	22	10x12.5	82
	33	10x16	108
	47	10x16	158
	100	13x18	262
	220	16x25	540
	330	16x31.5	718
	470	16x35.5	900
50	10	8x11.5	48
	22	10x16	88
	33	10x16	122
	47	10x20	164
	100	13x18	277
	220	16x31.5	587
63	0.47	8x11.5	12
	1	8x11.5	18
	2.2	8x11.5	26
	3.3	8x11.5	30
	4.7	8x11.5	38
	10	10x12.5	55
	22	10x16	88
	33	10x20	132
	47	13x18	172
	100	13x25	295
	220	16x31.5	587
